Roll Bag Making Machine

The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.

Previous：3 Side Sealing Bag Machine
Next：Side Sealing Bag Making Machine
Enquiry Online
Send a E-mail

Description


Features
This machine a specially-designed point-cut rolling dual-purpose for vest & flat bags, is controlled by a computer, the step setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurately, the computer numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.
Use:
The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.



Main Technical Variables

Model

DZB-600

DZB-700

DZB-800

Max. Width of bag-making

500mm

600mm

700mm

Max. Length of bag-making

1200mm

1200mm

1000mm

Bag-making Thickness

0.008-0.15mm

0.008-0.10mm

0.008-0.10mm

Speed of bag-making

40-120pcs/min

40-120pcs/min

40-120pcs/min

Power of motor

1.1 kw

1.5 kw

1.5 kw

Electric Heating power

1.2kw

2.2kw

2.2kw

Packing Dimensions(L×W×H)

3400X1200X1700mm

3600X1500X1700mm

3600X1500X1700mm

Machinery weight

About 800 kg

1000 kg

1000 kg

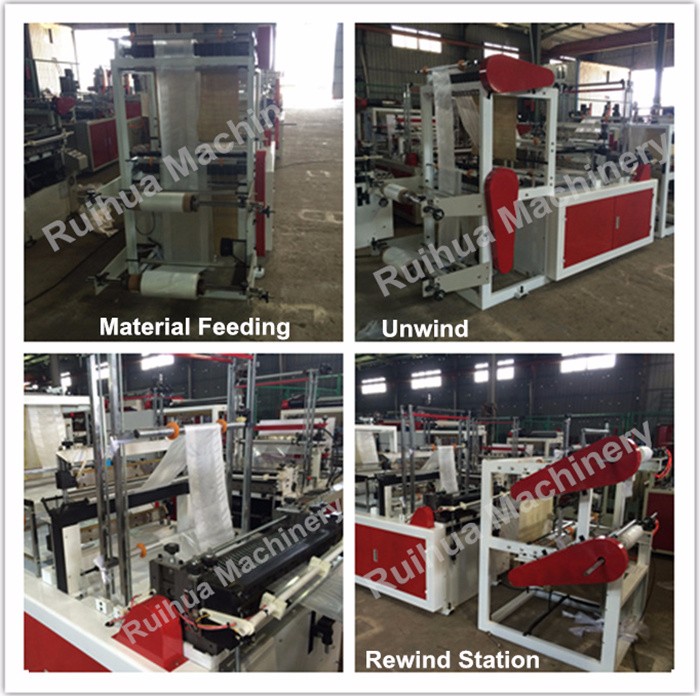

Machine details:
