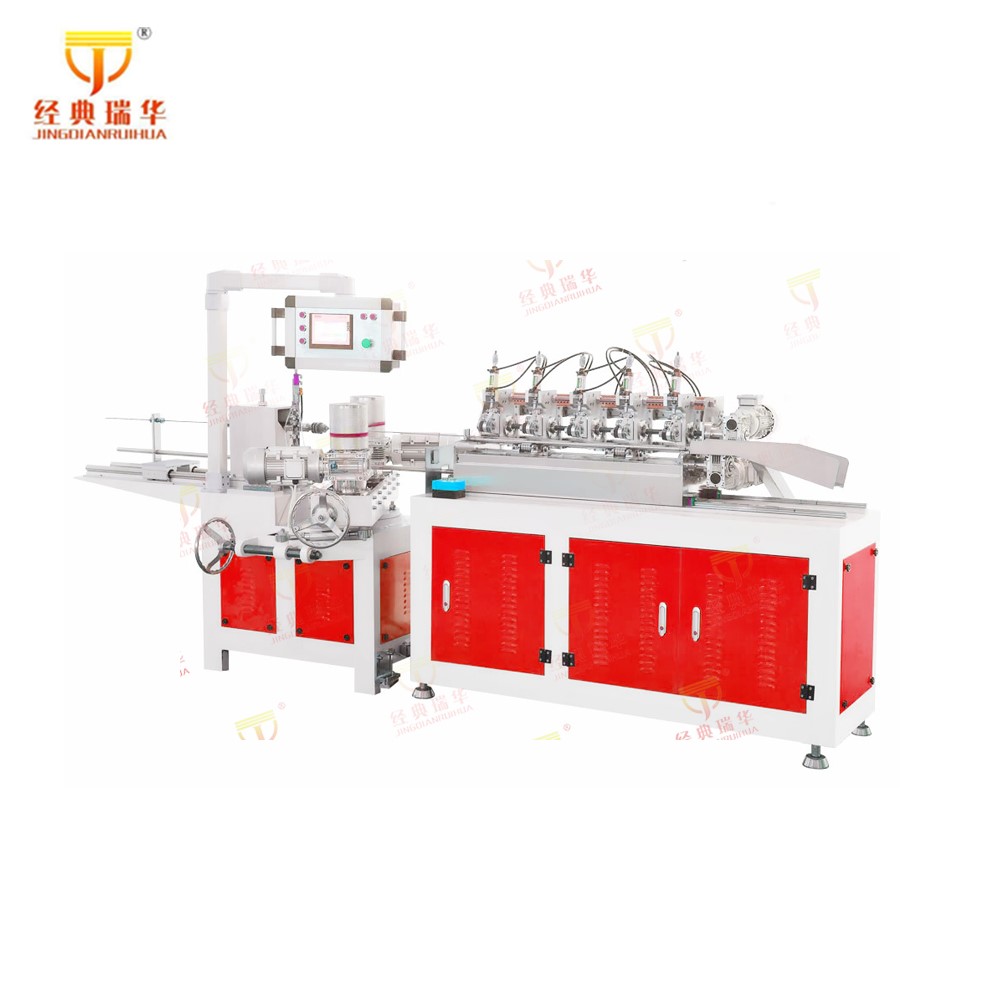

Multi-blades Paper Drinking Straw Making Machine

Machine is suitable for various different sizes paper straw production, usually for paper straw diameter 5-10mm.
Such paper straws are used widely in daily life.

Previous：Biodegradable Paper Straw Making Machine

No Next

Enquiry Online

Send a E-mail

Description

Multi-blades Paper Drinking Straw Making Machine

Machine is suitable for various different sizes paper straw production, usually for paper straw diameter 5-10mm, etc.

Characteristics:

1. With PLC control and touch screen, working data can be preset on the control panel, easy operation.

2. Frequency inverter motor worked as the main motor, with frequency inverter control.

3. Multi-blades cutting system for the paper straw cutting, with servo control system control, can track the cutting length with high precision and high efficiency.

4. Machine body and rack are made by stainless steel.

5. With transmission belt for paper straw collection.

Main Technician Parameters
Paper Layer	3 Layers
Inner Diameter	5-10mm
Straw Wall Thickness	0.25-1mm
Making Speed	1-50m/min
Cutting	Multi-blades cutting system (5 sets blades)
Cutting Control	Servo control, synchronous tracking
Glue Way	Single or double face glue
Speed Adjustment	By frequency inverter
Machine Body and Rack	Stainless Steel with outside color
Main Motor	1.5kw*2
Servo Motor	0.85kw YASKAWA
Operator	1 or 2
Supply Voltage	3Phase 4Wire 380V 50Hz
Paper Holder	3 layers
Glue Holder	3 layers
Belt	5 pcs
Mandril	2 pcs
Dimension(LWH)	350015001200mm
Operation Space(LWH)	720048001500mm
Weight	About 1300KGS
Space	7000*5000mm
