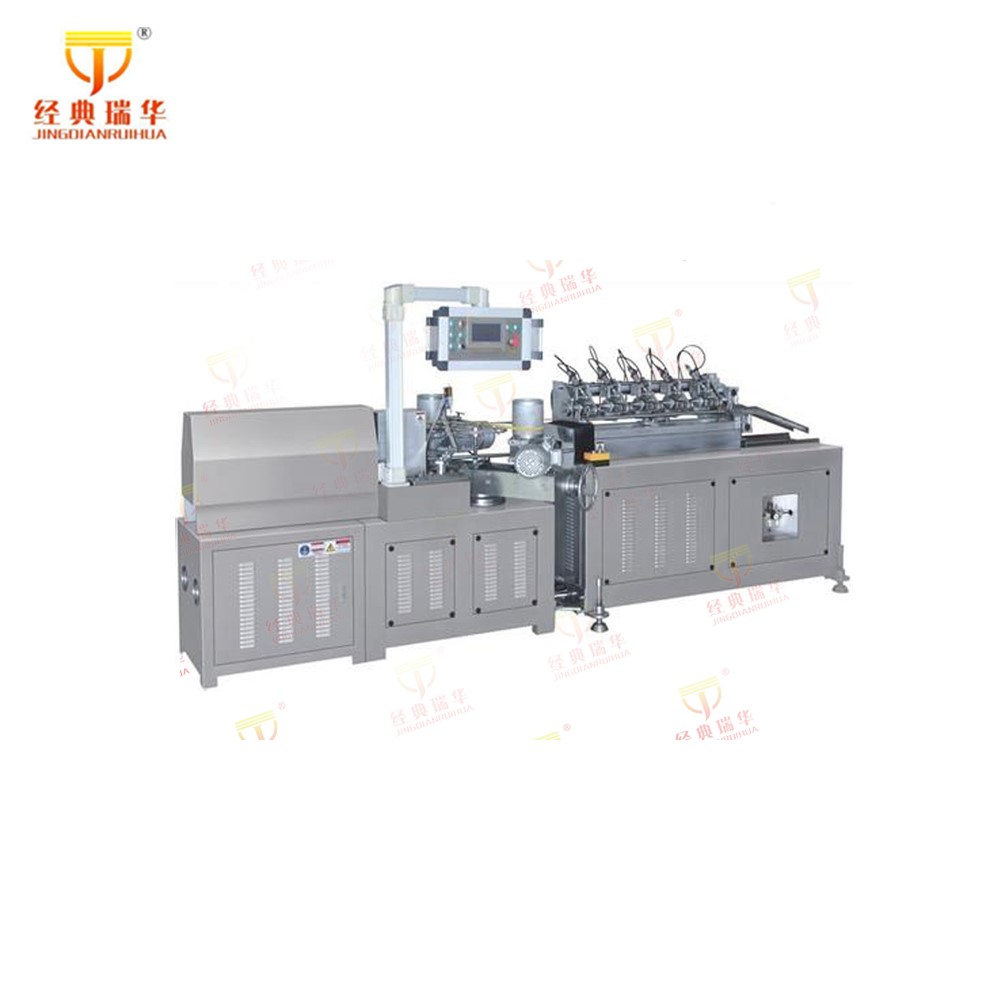

Servo Control Paper Straw Machine

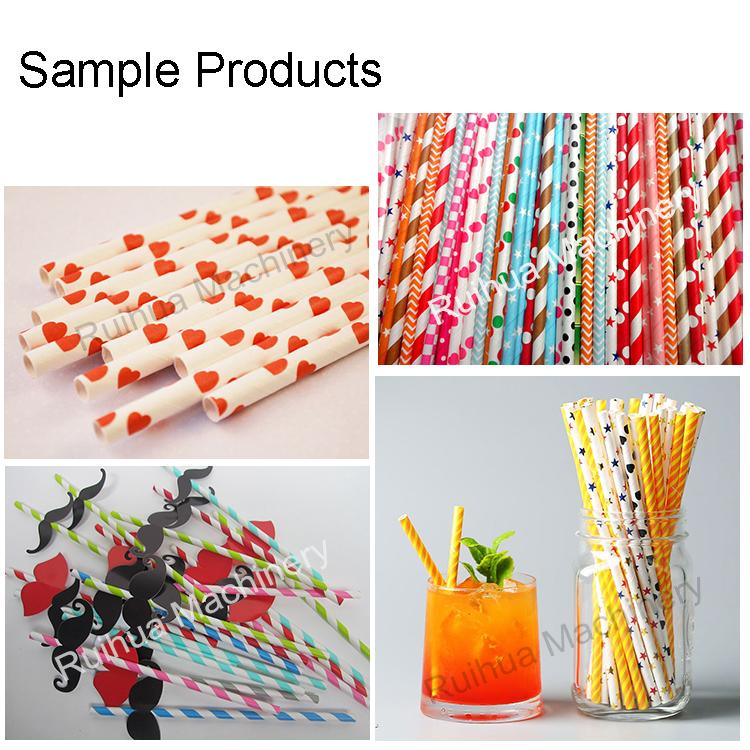

This machine is suitable for making different sizes paper straws and tubes, for drinks, pen inner tube and other usage.
Description
Servo Control Paper Straw Machine
Machine is suitable for various different sizes paper straw production, usually for paper straw diameter 5-10mm, etc.
Characteristics:
1. With PLC control and touch screen, working data can be preset on the control panel, easy operation.
2. Frequency inverter motor worked as the main motor, with frequency inverter control.

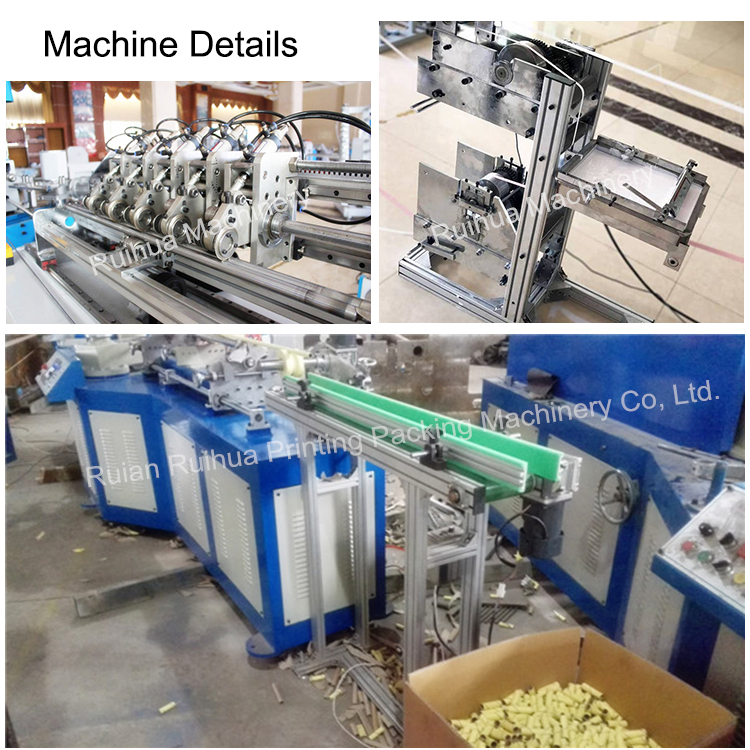

3. Multi-blades cutting system for the paper straw cutting, with servo control system control, can track the cutting length with high precision and high efficiency.
4. Machine body and rack are made by stainless steel.
5. With transmission belt for paper straw collection.
|
Main Technician Parameters |
|
|
Paper Layer |
1-5 Layers |
|
Inner Diameter |
5-30mm |
|
Straw Wall Thickness |
0.5-2mm |
|
Making Speed |
1-50m/min |
|
Cutting |
Multi-blades cutting system (5 sets blades) |
|
Cutting Control |
Servo control, synchronous tracking |
|
Glue Way |
Single or double face glue |
|
Speed Adjustment |
By frequency inverter |
|
Machine Body and Rack |
Stainless Steel with outside color |
|
Main Motor |
1.5kw*2 |
|
Servo Motor |
0.85kw YASKAWA |
|
Operator |
1 or 2 |
|
Supply Voltage |
3Phase 4Wire 380V 50Hz |
|
Paper Holder |
3 layers |
|
Glue Holder |
3 layers |
|
Belt |
5 pcs |
|
Mandril |
2 pcs |
|
Dimension(L*W*H) |
3500*1500*1200mm |
|
Operation Space(L*W*H) |
7200*4800*1500mm |
|
Weight |
About 1300KGS |
|
Space |
8000*6000mm |
If need more details, please contact me freely.
